Cleaning Up a Century-Old Refractor

18 Sunday Aug 2019

Posted by gfbrandenburg in astronomy, History, Hopewell Observatorry, Optics, Telescope Making

≈ 5 Comments

Tags

antique, Carl Kiess, Hopewell, refractor, Telescope

Last week, I was helping staff and students at the University of Maryland’s Observatory to clean out a storage trailer.

We noticed a seven-foot-long, 6-inch diameter telescope that had been sitting in a corner there, unused, ever since it was donated to the National Capital Astronomers (NCA) club nearly ten years earlier by the son of the original owner, Carl Kiess,  who had worked at the Lick Observatory in California and the National Bureau of Standards in or near DC, but who had passed away nearly fifty years earlier. I figured I could put it on a motorized telescope mount at Hopewell Observatory and at a minimum test the optics to see if they were any good. The current officers and trustees of NCA all said they thought this was a good idea.

One thing that caught my eye was how filthy and flaky the coating was on the tube itself, although the lens appeared to be in good shape.

IMG_5043
IMG_5044

IMG_5027

The drive, while impressive, does not have a motor, requires a pier, and is extremely heavy. I decided not to mess with the drive and to put it temporarily on our existing, venerable, sturdy, motorized, electronic drive we have at Hopewell Observatory.

So I experimented with various abrasives and solvents to clean off the nasty green coating; a fine wire wheel inserted in an electric drill did the best job. Here it is partly cleaned off:

GHCW2253
IMG_5059

I then used Brasso for a final polish, followed by a final cleaning with acetone, and then applied several coats of polyurethane to keep it looking shiny for a number of years. (The lenses stayed covered for all of this!) So this is how it looks now:

IMG_5060
IMG_5061

The next task is to make a temporary holder and then put it on the mount, and then test the optics.

Bath Interferometer at Stellafane

06 Tuesday Aug 2019

Posted by gfbrandenburg in astronomy, flat, monochromatic, optical flat, Optics, Telescope Making

≈ Leave a comment

Tags

Bath interferometry

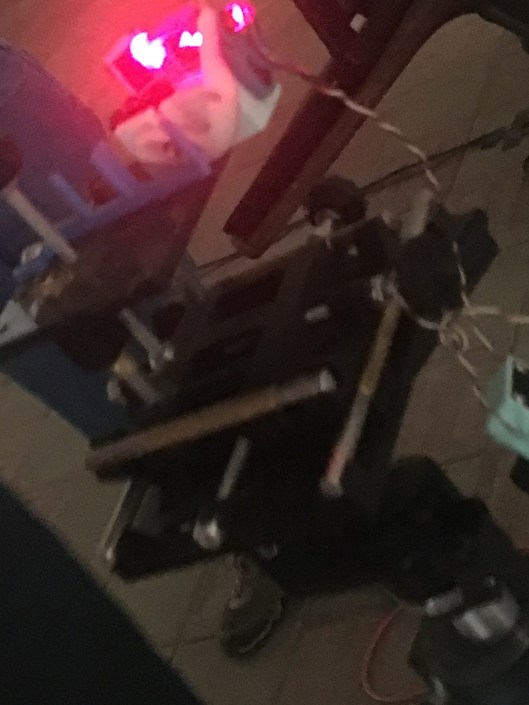

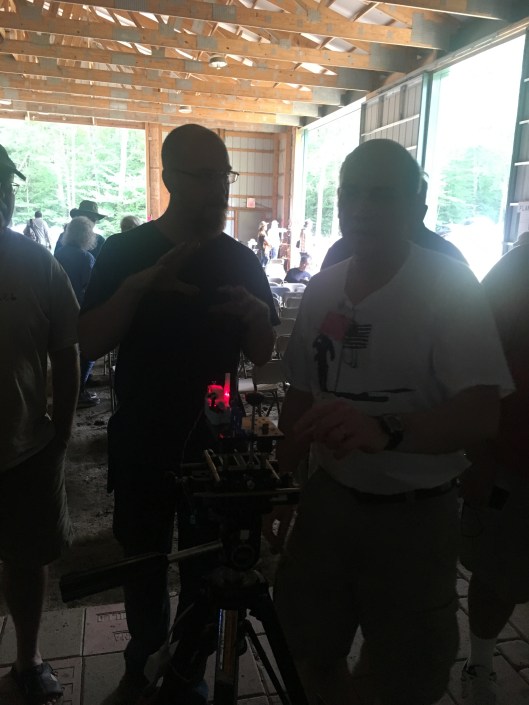

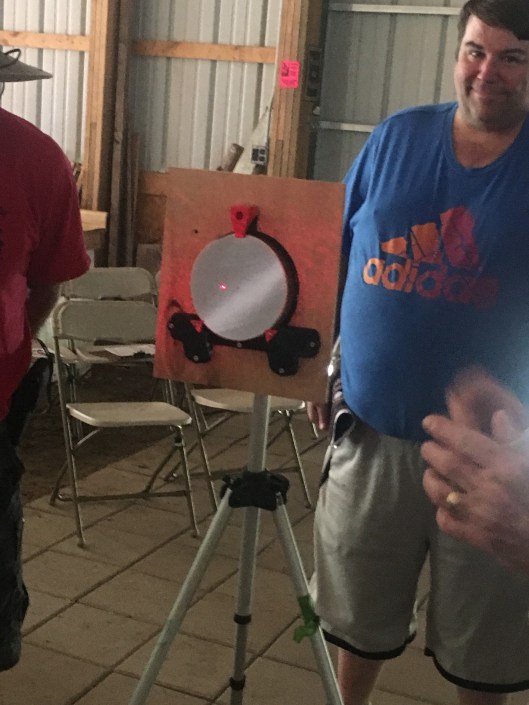

I am posting some photos and videos of the demonstration of a Bath interferometer on Saturday at the 2019 Stellafane convention.

IMG_4952

IMG_4955

IMG_4958IMG_4959

IMG_4961IMG_4962

Silvering Mirrors, and More, at Stellafane

05 Monday Aug 2019

Posted by gfbrandenburg in astronomy, flat, History, Math, monochromatic, optical flat, Optics, science, teaching, Telescope Making, Uncategorized

≈ 3 Comments

For me, these were the two most significant demos at the 2019 Stellafane Convention in Springfield, Vermont:

(1) Silvering large mirrors, no vacuum needed

We had a demonstration by Peter Pekurar on how to apply a layer of Silver (metallic Ag, not aluminum) onto a telescope mirror, accurately, with a protective, non-tarnishing overcoat, that works well. I looked through such a scope; the view was quite good, and I was told that interferograms are great also.

What’s more, the process involves overcoating a mirror with spray bottles of the reagents, without any vacuum apparatus needed at all. Note: Silver coated, not aluminum coated. This is big for me because the upper limit at our club’s aluminizer is 12.5″, but some of us are working on larger mirrors than that; commercial coaters currently charge many hundreds of dollars to coat them.

You can find information on some of these materials at Angel Gilding. Peter P said he will have an article out in not too long. Here are a few photos and videos of the process:

IMG_4972

Finished mirror; notice it’s a little blotchy





IMG_4985IMG_4987

(2) Demo and links for Bath Interferometer (see http://gr5.org/bath )

How to set up and use a Bath interferometer to produce highly accurate interferograms of any mirror for many orders of magnitude less cash than a Zygo interferometer. As I wrote earlier, Alan Tarica had taken the lead on fabricating one at the CCCC – NCA ATM workshop, and we eventually got it to work, but found it rather frustrating and fiddly to use.

The presenter is a HS teacher, and it shows: he explains things very clearly! On his website ( http://gr5.org/bath ) you can get plans for 3-D printing the parts for the Bath device, if you have any access to a 3-D printer, so you can print the parts out for yourself. He also has links to vendors that are selling parts for it, such as certain small lenses, mirrors and beam splitters. He shows you where you can get them for very little money from Surplus Shed and such places. Or you can purchase his really inexpensive kits that he’s already 3-D printed for you. Plus parts for an XYZ stage, which you will need for fine focus. The whole setup (not counting mirror stand and two tripods, which he assumes you have access to already) is under $130.

I will need to look carefully at our setup as built almost completely by Alan, and see how it differs and what we would need to do to make it better. The problem is that there are lots of little, tiny parts, and many of them need to be adjustable. We saw him doing LOTS of little adjustments!

Before his talk, I had absolutely no idea how this (or similar interformeters) really worked. Now I understand: the interference fringes that we see are really contour lines – like we see on on a USGS topo map, only with the mirror tilted in one direction or the other. A big difference with the USGS topo map is that there, the contour lines (isohypses – a new word for me today) are often 10 feet to 100 meters apart. In interferometry, the contour intervals are either one or one-half lambda (wavelength of light) apart – a really tiny amount! We need that level of accuracy because the surface we are studying is sooooooo flat that no other measuring system can work. His explanation of this whole thing now makes perfect sense to me. And the purpose of the software (free!) is to un-slant the mirror and re-draw it using the countour-line information.

Beautifully clear explanation!

Caution: a friend who works professionally in optics told me his team had made three Bath interferometers, using cheap but good quality ebay xyz stages, and found that they were just too much trouble; so they borrowed a very expensive commercial interferometer (costing many tens of kilobucks) from another department and are using that instead. I’m not selling my house to get a Zygo interferometer!!! But I will try the Bath interferometer instead.





Stellafane 2019 So Far

03 Saturday Aug 2019

Posted by gfbrandenburg in Uncategorized

≈ Leave a comment

It’s been quite interesting up here at Stellafane. I’ve seen demos of a really nice DOuble pass autocollimation test.

A fellow whose email is Moonward had a much cuter, quieter, and lighter aluminizer / vacuum chamber than ours but only 7 years younger; obtained the same way as ours, via surplus giveaways from some agency discarding it.

He uses ferric chloride instead of HCl. He’d never heard of Alconox. Uses calcium carbonate slurry or else … I forget what; hope I wrote it down

I got to follow along with the optical judges. Those guys are really sharp on Star tests. The eight scopes entered had optics that were either very good or excellent. Contrary to what some folks have told me, the judges are not heartless. One of them, Francis O’Reilly, who is also Stellafane Vice President, and who had visited our telescope making workshop to see what we were up to there (at the Former woodshop of the Chevy Chase Community) and had some mirrors aluminized, asked me specifically to come up and see how they judge projects optically.

I am so glad that Francis did!

Too bad I didn’t get to look at cruddy mirrors as well. But no junk got submitted this year to us judges. I thought the images inside & out of focus looked very similar to what I’ve read in Souter and in Piekiel. I hope I can remember well enough what these looked like so that when I star test a poor mirror, then I can recall how they differ. This being my first time attempting to make a judgement, I put down no numbers. (They gave scores on a scale of 0.0 to 5.0 (best) on five criteria: contrast, symmetry, edge, and two more. I didn’t get to keep any of the papers.

No mirrors over 8″, and only one entry in the complex optical category – a schiefspueglet. I didn’t get the opportunity to look thru it. I spent a lot of time just waiting in line to look thru a scope, which is not exactly efficient. Plus, so did the contestants: they had to spend a lot of time waiting in the dark for us to show up. Fixable with a little better planning I think.

I’m not going to post pix because I’m out in the woods of VT; cell reception is 1/4 (low bandwidth) the nearest town, Springfield, is small, and actually produces a very small light dome. The Milky Way was great! Right overhead most of the night (I finally got a lift part way back to my tent around 2am.) but some high clouds as a part of a slow warm front did start coming in. Almost no dew; I wore shorts, sandals, T-shirt, and sometimes sweatshirt. Very comfy esp compared to New Mexico or DC.

So later with pix. This is off top of head in a quiet moment while it’s still fresh.

So all I got to look at last night was the bright Star Altair, rolling the focus inside and outside, with really short focal length eyepieces. In a grand total of six telescopes. out of ten submitted.

Looking at the rings of the Airy disks and rings around the star as you roll the focus of the eyepiece away from the perfect image point and then back inside. So, no, I didn’t get to view anything else in the Sky. I shoulda brought some binoculars; the sky was nice. But I was busy a good fraction of the time. If it were me, I would not have us go out in teams of 4-5, but maybe of two.

This sort of a test is the most objective one of the entire telescope. But it’s hard to do. The setup can take an incredibly long time, and the weather conditions have to be excellent: clear, steady skies, no or very little wind. And we had all of those conditions last night, which was very lucky. summer evenings in Vermont can be so beautiful, as I remember from my own long-ago years of school and work in New England.

It’s so sad to see all the empty factories just below downtown Springfield, in what was called Precision Valley in my time as a Dartmouth undergrad (1967-71). I joined SDS when I was there because they were the ones fighting against what we saw as the immoral and imperialist American war in Vietnam, and we were looking for allies in a general struggle for a more just and democratic socity, against exploitation, racism, unjust wars,m. But the War in Vietnam really focused our attention, especially since we were likely to be drafted to go fight in a war we considered unjust, and that we didn’t want to fight. (I certainly would have volunteered in WW2 and to defend the Union; but the US has also fought a lot of wars that were just plain wrong.)

we made some steps towards doing just that with blue-collar workers like the ones here at Jones & Lampson, Bryant Chucking Grinder; they were represented by the United Electrical Workers Union, which was NOT corrupt, and had leftists of some sort in its leadership. So when those workers went on strike, we in SDS did what we could to help, raising some money and walking on picket lines. It’s pretty cold striking in winter in Vermont!

This Stellafane organization is huge. I read that attendance is around 1,000 people, which makes it pretty crowded. Food isn’t nearly as good as AHSP; it’s all a la carte (hamburgers, cheese steaks, fries, scrambled eggs, etc) except for a lobster and steamer clam dinner ordered in advance (it was really, really good!). But it sure beats cooking and all the mess that entails. Lots and lots of people up here have made one or more scopes, or parts of one, or had a relative who did. At least a fraction of women and girls and other young people camping out and observing, but 8 of the judging staff were older white guys like me; two women.

Too bad I didn’t get to look at cruddy mirrors as well. There will be time for that later! Need to set that up in our shop. Just wish it didn’t take an hour and a half to set up, with help!

Today going to talks / demos of well-functioning bath interferometer and spray silvering!!!! Alan T took the lead in setting up a Bath interferometer at our lab, but we ended up not being really happy with it. Hopefully this demo will make sense.

I have already talked a bit with Peter Pekurar, who is going to be doing the spray-on silvering (NOT aluminizing!!!). He also says he has figured out how to prevent the silver from tarnishing! Amazing! And it’s cheap! (How cheap I’ll discover later)

He had a regular $2.99 mirror that he FRONT- silvered and put back into its frame, some time ago, as a demo. Completely untarnished. Unlike the few pieces of silver we have in our family, and which require constant polishing to keep shiny, this was shinier than the average bathroom mirror, because the light doesn’t have to pass through the glass twice. Amazing. The demo is 3-5 pm today.

I asked about how the procedure affects the figure of the mirror; he said they do interferograms AFTER the silvering, and they all pass with flying colors. Again, amazing.

I heard some criticism of Gary Seronik — the said that when he writes up telescopes in S&T, he never actually looks through them himself. He relies entirely on the builder. Seems to me that should always be required for that

Gotta go to bath! Not shower! Bath Ingram!
